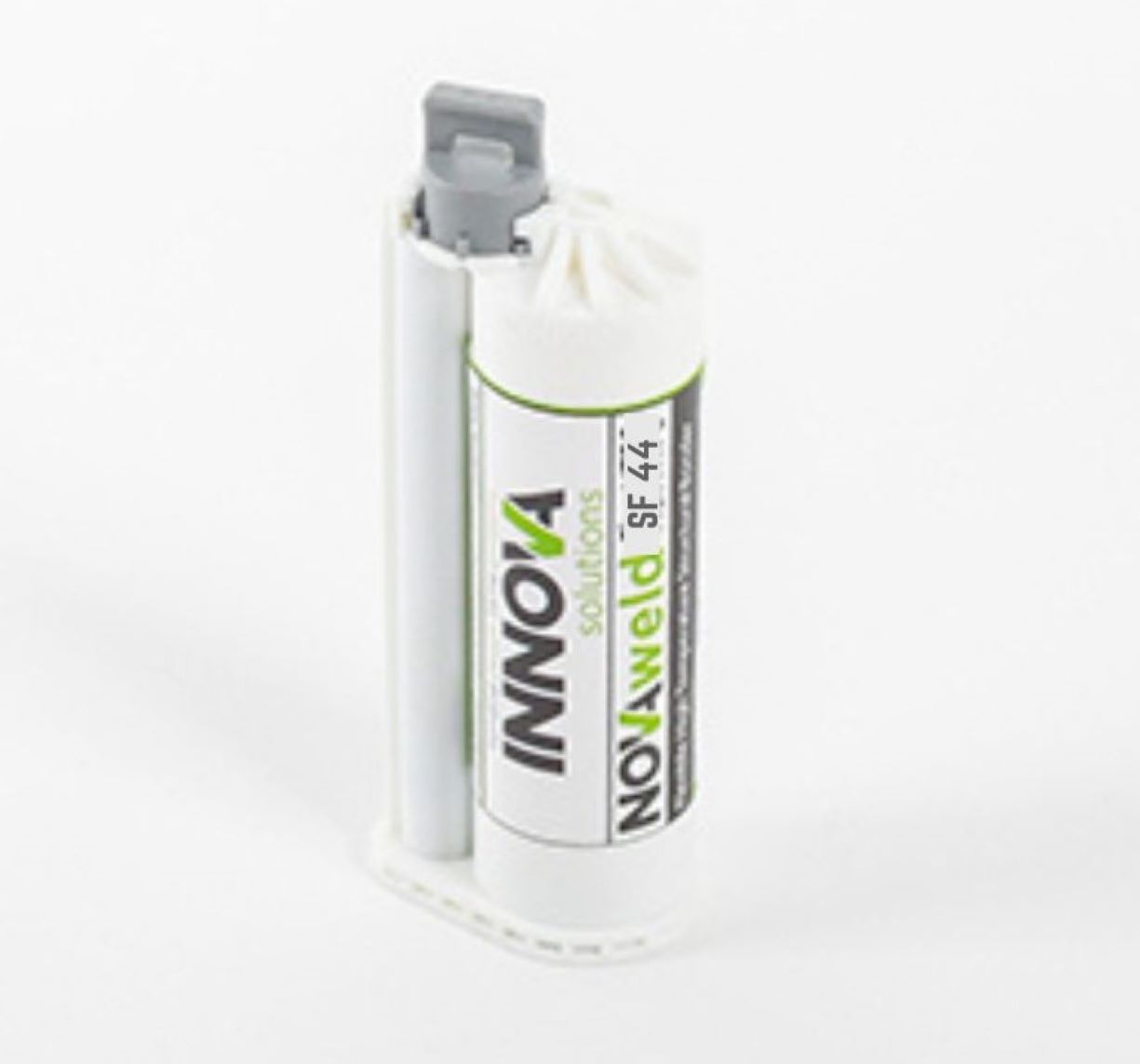

NovaWeld SignFix 44 50ml Low Shrinkage Adhesive Nylon locator Bonder

£16.79 inc VAT £13.99 ex VAT

Sign makers use Signfix 44 for bonding nylon locators to ACM with huge reduction in bond-line read through.

Signfix 44 structural Acrylic Represents the next generation of structural adhesives, combining primer-less metal bonding and permanent toughness with a huge reduction in bond-line readthrough.

The latest adhesion promoter package enables design engineers to access a huge list of compatible substrates from plastics to metals and the latest hybrid composite materials.

With a particular focus on the automotive manufacturing industry due to the combination of excellent environmental resistance and its ability to avoid read-through on consumer facing panels and composite sections, this grade sets the benchmark for the industries permanent bonded solution.

This grade is manufactured in two cure speeds to accommodate a wide variety of assembly and production operations.

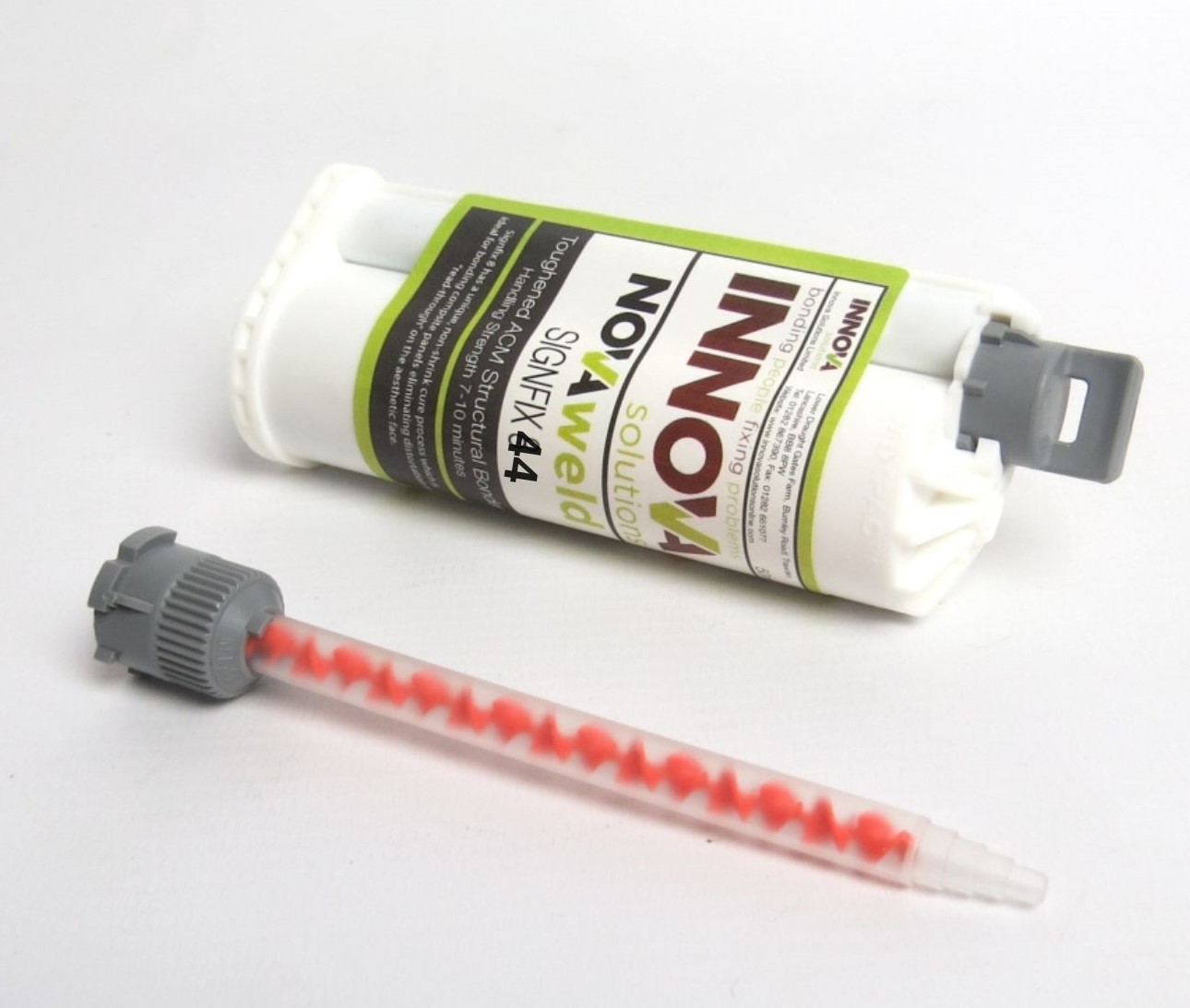

Cartridge size: 50ml comes with one 10:1 Nozzle.

Appearance Colour: Black

SKU: 1036 Categories: Brand:

Description

Compatible Substrates

  • Aluminium
  • GRP/FRP
  • Stainless Steel
  • Granite
  • Mild Steel
  • Marble
  • UPVC
  • Urethanes
  • Polyesters
  • Vinyl Esters
  • ABS Galv/Zinc Coated
  • DCPD Polycarbonate
  • Acrylic ACM Sheet
  • Composite panels

Instructions for Use

  1. Always consult MSDS before using Signfix 44 for the first time.
  2. Carry out surface preparation where required.
  3. Remove nut, attach mixer nozzle and replace nut.
  4. Dispense sufficient adhesive to ensure equal mix and uniform colour.
  5. Apply adhesive to one surface and assemble components carefully, clamping if required.
  6. It is always easier to remove any excess adhesive prior to cure using a suitable cleaner.
  7. Allow the adhesive sufficient time to achieve handling strength before moving or unclamping components.

Curing Cycle

Once mixed at the 10:1 ratio the working time of the product is the period whereby the adhesive remains fluid and is easily transferable between two or more mating surfaces.

Temperature, volume and substrate have a direct effect on the length of this period as the product cures by an exothermic reaction. Higher temperatures and larger volumes speed the reaction causing a reduction in open and cure time.

Lower temperatures and smaller volumes slow the reaction time extending both the open time and ultimate full cure time.

  • Open Time 4-6 min
  • Fixture Time 12-15 min

Storage and Shelf Life

  • Shelf life 6 month. Storage and Shelf Life Sign Fix 44 should be stored unopened in suitable hazardous storage conditions for adhesives that are in a cool, dry location and out of direct sunlight.
  • Stored correctly, this grade can offer a 9-month shelf life from its manufacture in the UK.
  • The optimum storage condition for this grade is between 6 and 12°C. Storing material outside this range may reduce the overall shelf life of the material

NOTE: This product requires a 50ml 10:1 applicator Gun to use.

Cartridge size: 50ml comes with one 10:1 Nozzle.

Appearance Colour: Black

NovaWeld SignFix 44 Datasheet
