COMPACT Electronic Boom Barrier – Solar/Battery Operated Lift/Lower – Overall Width 1,650mm – Drive Through Width 1,500mm – Supplied with 1 x Remote Fob – Surface Fix – Red/White

£1,712.46 inc VAT £1,427.05 ex VAT

Characteristic Value
Type electrical
Material Steel (post), aluminium (barrier boom)
Finish painted
Colour red/white
Overall length 1650 mm
Clear width 1500 mm
Barrier width 1650 mm
Fixture for screw anchoring
Weight 30,00 kg

Delivery lead time 15 to 20 days for this product.

SKU: 223.21.698 Category: Brand:

Description

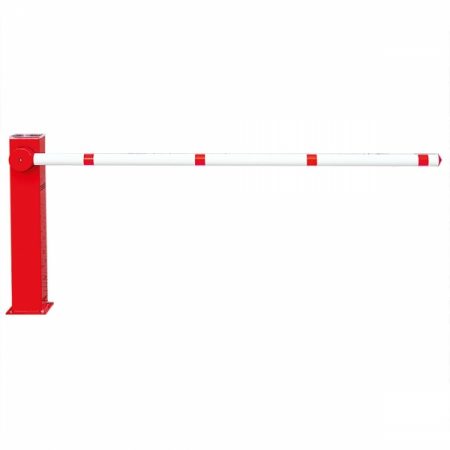

COMPACT Electronic Boom Barrier

The COMPACT Electronic Boom Barrier provides a reliable and effective barrier for small to medium sized entrance ways.The barrier is powered by a combination of internal battery and solar power. Installation is extremely simple as the unit comes preassembled, just bolt down in selected position and fit boom arm to pivot post assembly. No outside electrical supply required.

  • Highly visible boom arm with red reflective strips.
  • All aluminium construction.

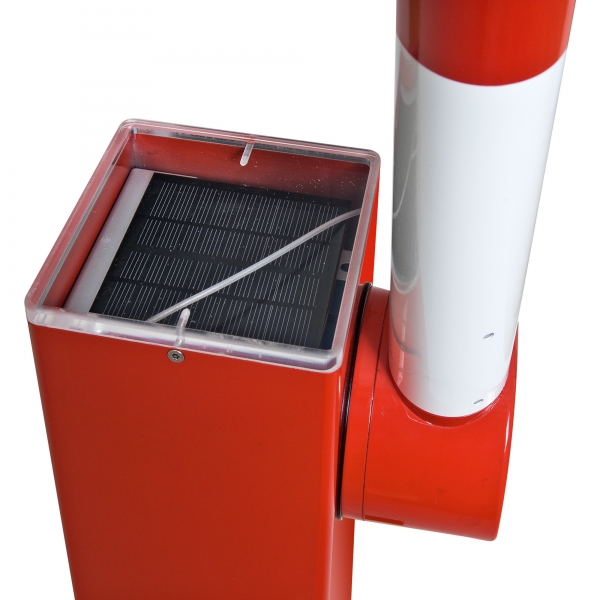

  • Solar powered operation.
  • Manual override in case of emergency.

Applications:

Private estate entrances, car parks, building entrances etc.

Specifications:

       Pivot Post

  • Material: Aluminium
  • Dims: 150 x 150 x 1,000mmH
  • Base plate: 200 x 200 x 5mm Gauge

       Boom Arm

  • Dims: 60mm Dia.
  • Max. length: 2,500mm
  • Max drive thru: 2,650mm

Operational Cycles:

  • Battery: Up to 2,500 cycles/day (approx.)
  • Solar module: Additional 50 cycles / day (approx.)
  • Remote control: 12m range

    Versions/models of product COMPACT Electronic Boom Barrier:

    The table below lists all versions and models of product COMPACT Electronic Boom Barrier.
    To view the respective product data sheet, click the product number.

    Material Colour Overall length (mm)
    1650 1500 30.00 sku 223.21.698
    2150 2000 30.50  sku 223.24.144
    2650 2500 31.00 sku 223.29.795
