COMMANDER Drop Down Frame Post Galvanised Finish Surface Fix

£218.22 inc VAT £181.85 ex VAT

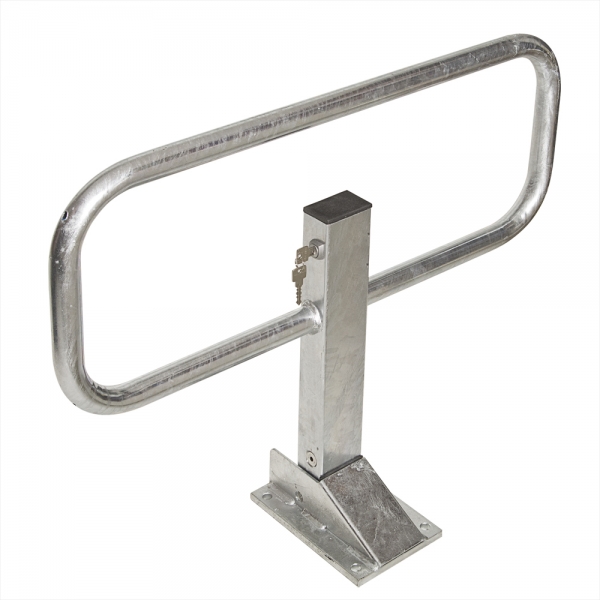

The COMMANDER Drop Down Frame Post is a strong and effective car parking post, available with or without red reflective bands and is also available in white finish with red reflective bands. We can supply cylinder locks to match to existing keys if required (at no extra cost), or the COMMANDER Drop Down Frame Post can be supplied with a profile cylinder lock.

  • 68mm Low profile folded down height.
  • Suitable for most makes of cars.
  • Hot dip galvanised for long life.
  • Bevelled base protects tyres.
  • For surface mounting or permanent fixing in concrete.
  • Secure mortise cylinder lock (keyed alike option available).
  • Hinge protected by lateral guide plates.
  • finish: hot-dip galvanised
  • Colour : zinc grey
  • Fixture: for screw anchoring

Applications:

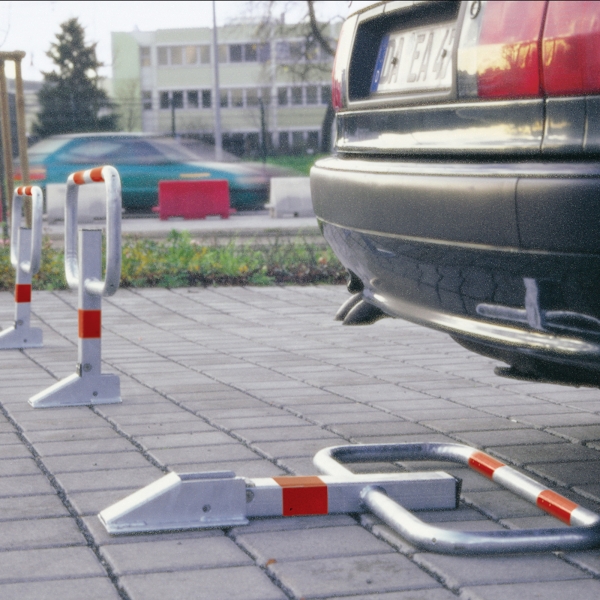

Car parks – private and public, multi-story car parks, municipal car parks etc.

SKU: 112.18.153 Categories: Brand:

Description

Specifications:

  • Overall height (above ground): 570mm
  • Height lowered: 68mm
  • Centre post: 70 x 50mm
  • Frame width: 780mm
  • Frame tube dia. 33.5mm
  • Sub surface versions are set in concrete to depth of 330mm

Characteristics of the article 112.18.153

Handling folding
Finish hot-dip galvanised
Colour zinc grey
Overall height 570 mm
Height above ground 570 mm
Barrier width 780 mm
Drive-over height 68 mm
Fixture for screw anchoring
Locking mechanism multiple-key system
Locking mechanism Cylinder lock
Weight 10,90 kg

Product info Downloads

Through Bolt Anchors 12 x 110mm are sold separately link below:

Through Bolt Anchors 12 x 110mm – Multi Supplies 4U
