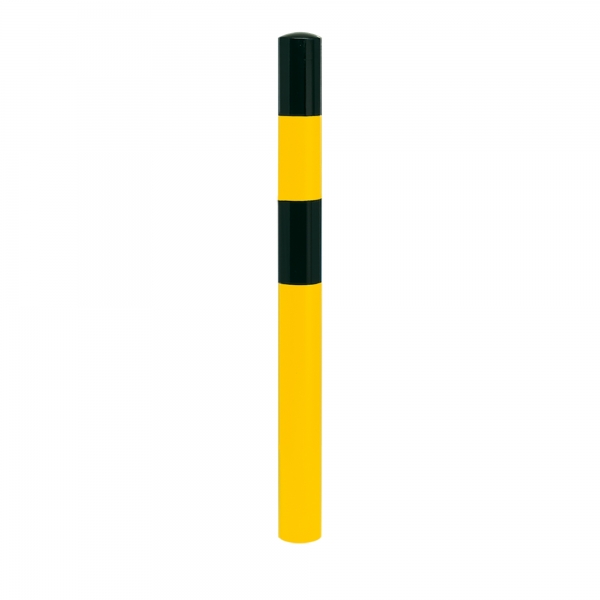

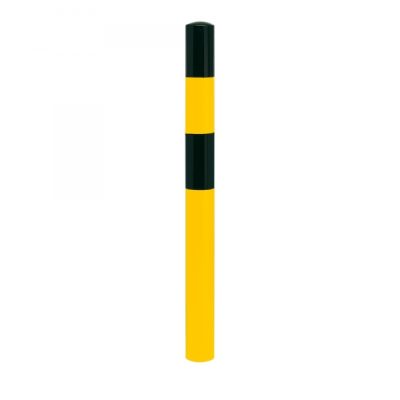

BLACK BULL heavy duty bollard type S Steel 3.6mm D 90 H1200(+400)mm for embedding in concrete yellow/black plastic coated

£131.86 inc VAT £109.88 ex VAT

The BLACK BULL Heavy Duty Bollard range has a wide spread of protective capabilities that meet most eventualities.

  • Heavy duty protection.
  • Manufactured from high grade steels.
  • Highly visible finish.
  • Hot Dip Galvanised and powder coated for Indoor and Outdoor use.


Use bollards ‘L’ to ‘XXL’ in traffic areas where lorries and forklifts operate, loading bays, site entrances, corners of buildings etc.

The use of bollard ‘S’ is recommended where space is restricted.

The ‘XXL’ bollard is equipped with a removable cap, which enables the bollard to be filled with concrete when in situ if required.

Lead time 10 to 15 days.

SKU: 199.23.701 Categories: Brand:



  • Height: 1,200mm above surface
  • Fixing: Surface – Surface plate with pre-drilled 4 fixing holes/8 fixing holes (3XL). Sub-surface – 400mm depth with ground anchor


  • Hot Dip Galvanised and Powder coated yellow with black bands
  • Types ‘S’ and ‘L’ also available in HDG & Powder coated White/Red
  • Types ‘S’ and ‘L’ also available in Powder coated only Yellow/Black for indoor use

Dimension options:

       Protection Bollard ‘S’

  • Diameter: 90mm
  • Wall thickness: 3.6mm
  • Suitability: Medium to heavy impacts

       Protection Bollard ‘L’

  • Diameter: 159mm
  • Wall thickness: 4.5mm
  • Suitability: Heavy impacts

       Protection Bollard ‘XL’

  • Diameter: 194mm
  • Wall thickness: 4.5mm
  • Suitability: Very heavy impacts

       Protection Bollard ‘XXL’

  • Diameter: 273mm
  • Wall thickness: 5.0mm
  • Suitability: Extremely heavy impacts

       Protection Bollard ‘3XL’

  • Diameter: 323mm
  • Wall thickness: 6.3mm
  • Suitability: Extremely heavy impacts

  • Characteristics of the article 199.23.701

    Material Top grade steel
    Finish powder-coated
    Colour yellow/black
    Overall height 1600 mm
    Height above floor 1200 mm
    Diameter 90 mm
    Material Thickness 3,6 mm
    Fixture for embedding in concrete
    Applications indoor use
    Type S
    Weight 14,50 kg
