Description

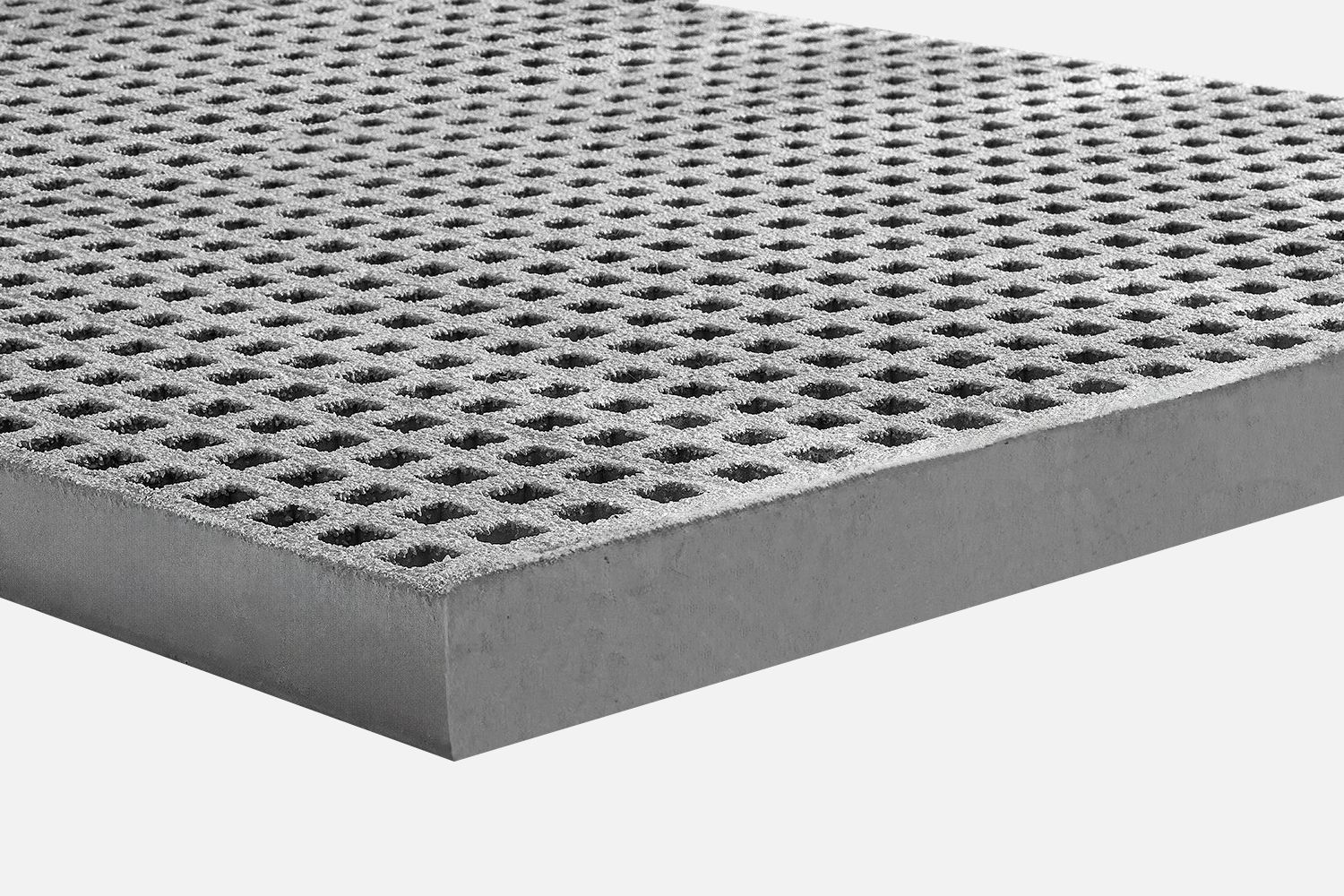

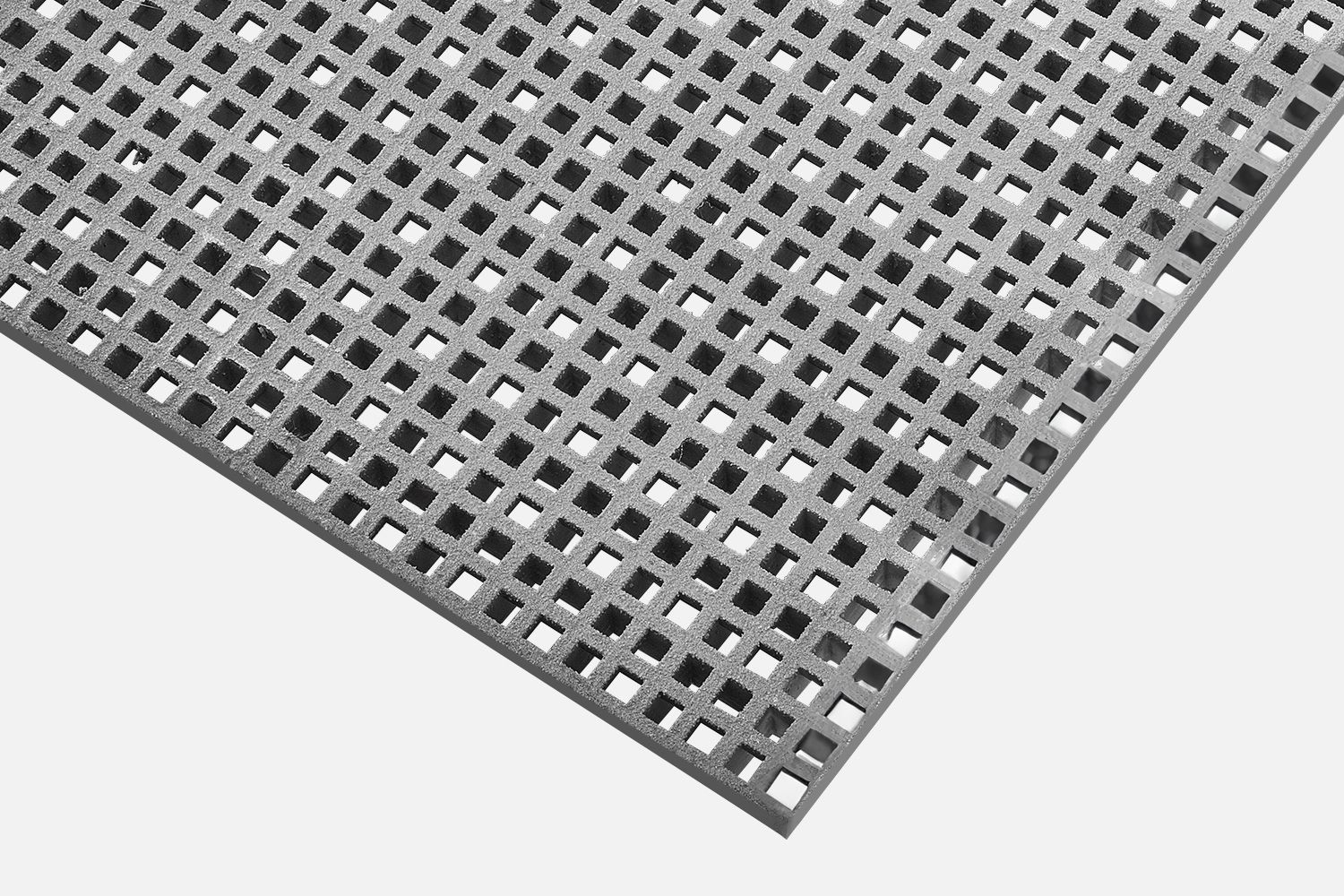

GRP Mini Mesh Grating
Our GRP Mini Mesh grating is a specially designed and moulded non-slip composite floor solution, constructed from the highest quality fibreglass making it chemical, rust, and corrosion resistant, and lightweight, whilst also offering longevity and durability. With limited tooling and installation costs, we can offer a vast range of standard length and width sizes, plus our in-house cutting service means we can offer bespoke sizes for that perfect fit.

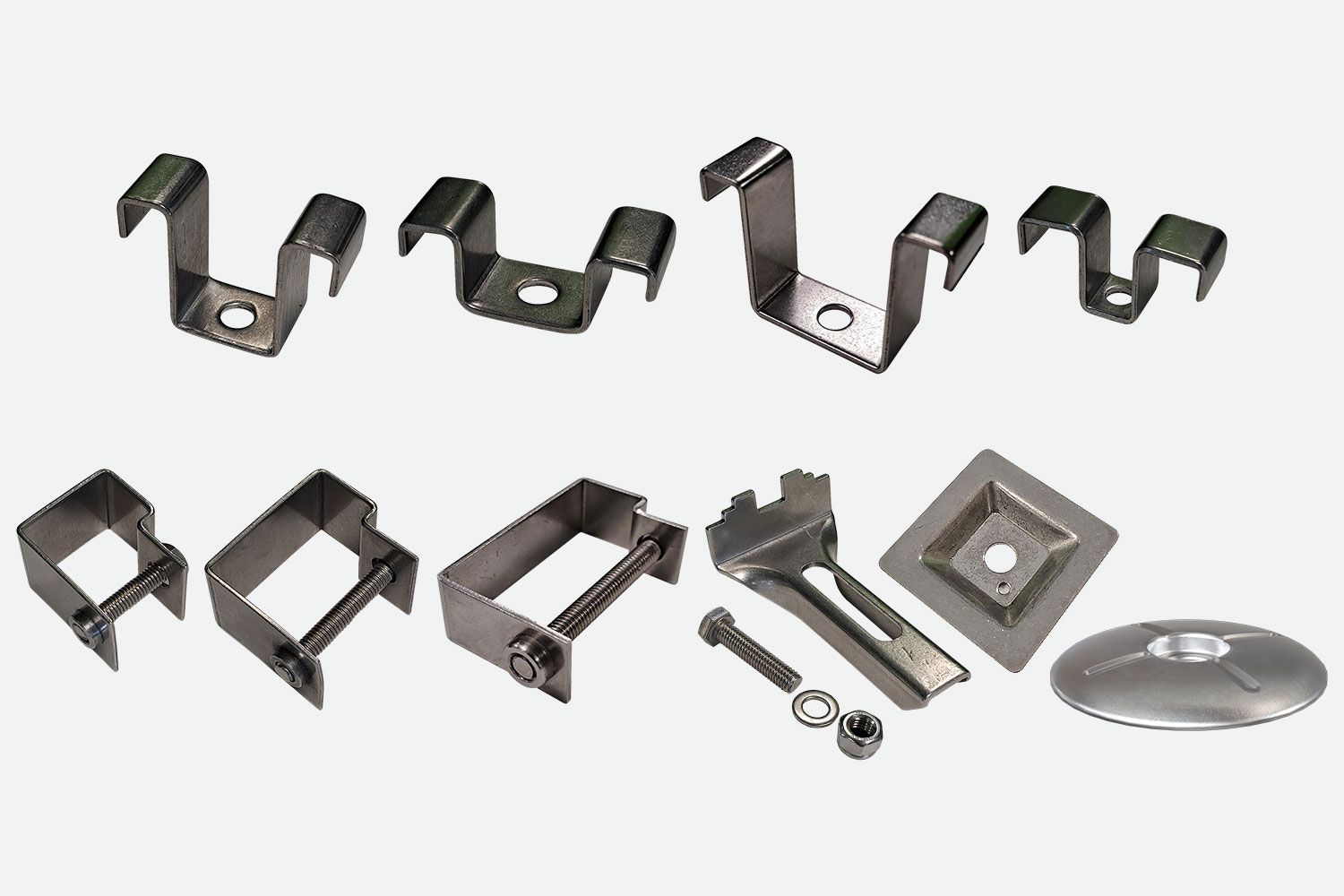

Optional clips are available to purchase if required.
Applications

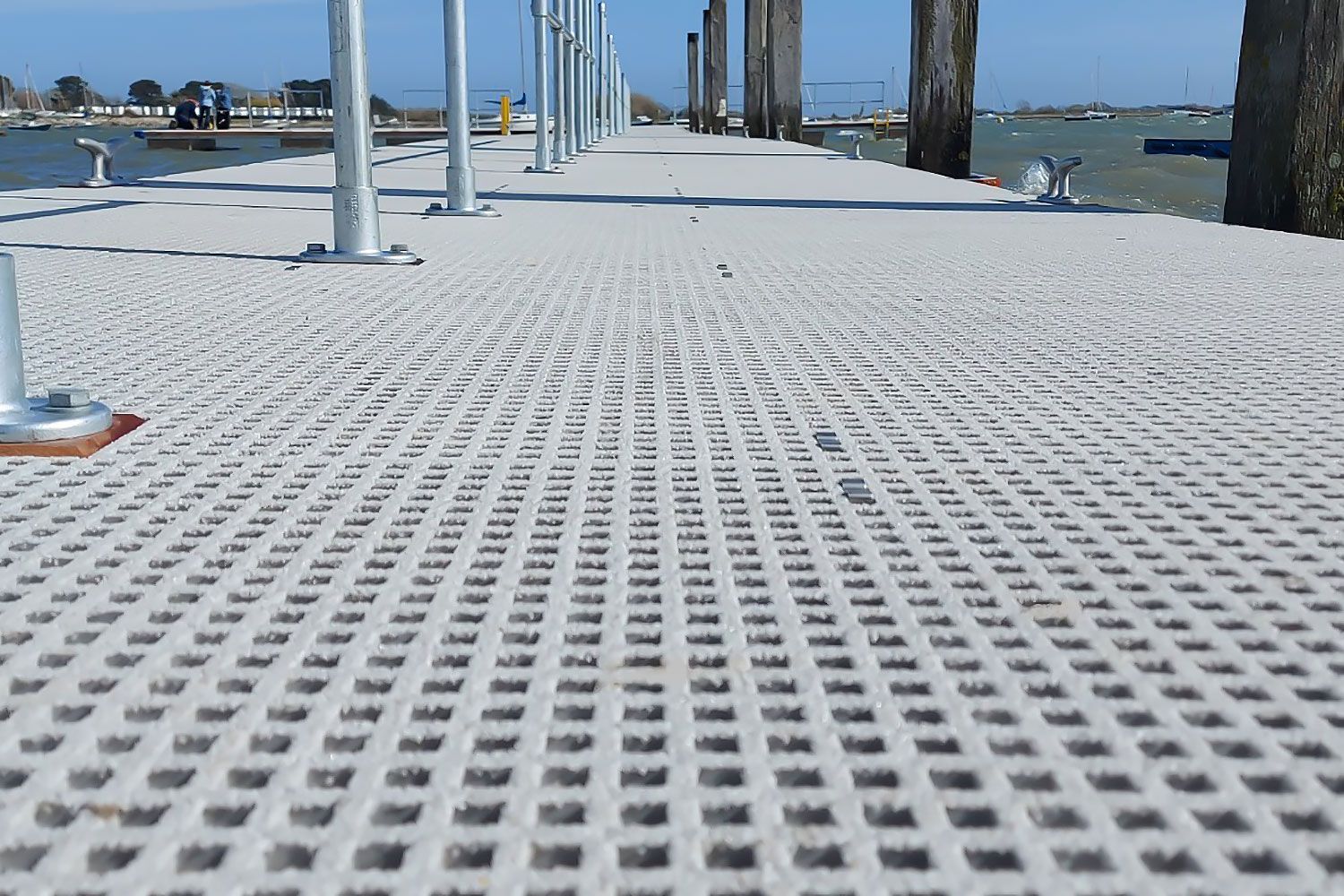

Perfect solution for platforms, walkways, flooring, ramps and covers for industrial or construction sites, chemical and shipping industries
as well as offshore oil rigs.
Handling
Safe handling practices should always be employed. GRP should also be stored face down to prevent
damage.
Cutting
Minor adjustments, small cut outs, can be made with a hacksaw or a jigsaw with a suitable blade. We
offer a full in-house cutting service, however, should you wish to cut the grating yourself, this is easily
to do by using orbital cutting equipment with either a stone or diamond blade. Cutting should be
carried out externally, or where there is dust extraction, or suitable ventilation. Appropriate protective
equipment should always be worn.
Cleaning
Being a highly durable material, using a stiff brush will normally be sufficient to remove everyday dirt and debris, and for more stubborn dirt, wash with warm water and a mild detergent. A pressure washer on a low-pressure setting can also be used, however, care should be taken to ensure that this does not harm the integrity of the fixings being used, likely to be screws and/or adhesive. We recommend always testing any cleaning method and liquids on a small inconspicuous section before applying to the full area. Any spills should be cleaned immediately in line with the product data sheets and the company’s own safety procedures.
General Routine Maintenance
The integrity of all fixings should be checked on a regular basis to ensure that the mini mesh remain in a firm and stable position. The gritted surfaces and GRP substrate should also be checked regularly, the frequency would depend on the nature and volume of footfall. As a guide, for high traffic areas a monthly inspection would be advisable
Technical info:
Closed Edge Sizes – 19mm/19mm sq external and 12mm/12mm sq internal
GRP Chemical Resistance Chart available on request.
Slip resistant: Excellent slip resistance to level 3
Wear resistant: Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant: Yes
Cut to size: Yes, tolerance +/- 5mm
Disability friendly: Yes, the low profile makes it suitable for wheelchair users
Dry area: Yes
Wet area: Yes
Oily and greasy area: Yes
Heavy area: Yes
Wheeled area: Yes
Environment: Suitable for indoor and outdoor use
Flame retardant: Yes
Impact resistant: Yes
Non-conductive (Electrical): Yes
Non-conductive (HV
Electrical): Ye
