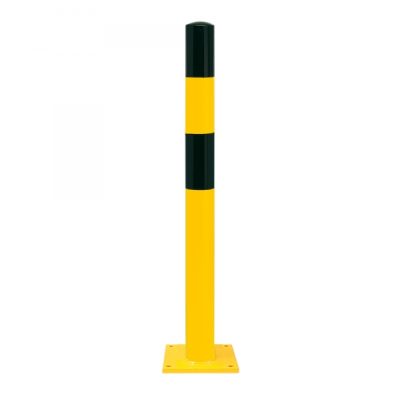

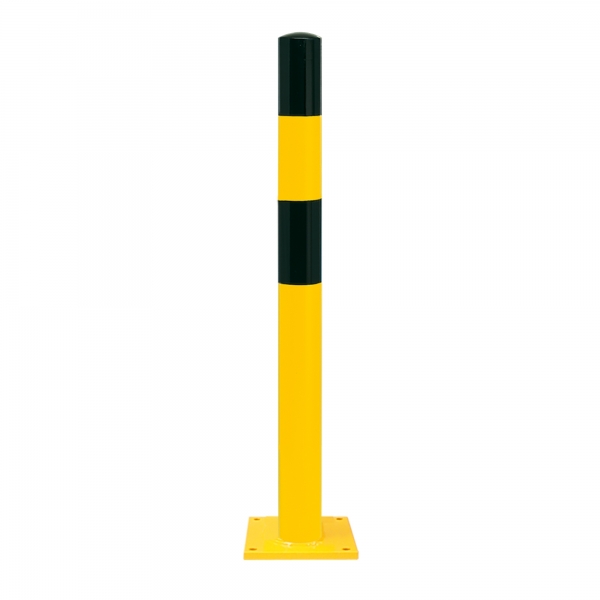

BLACK BULL heavy-duty bollard S Steel 3.6mm D159 H1200mm for screw anchoring yellow/black plastic coated

£143.95 inc VAT £119.96 ex VAT

The BLACK BULL Heavy Duty Bollard range has a wide spread of protective capabilities that meet most eventualities.

  • Heavy duty protection.
  • Manufactured from high grade steels.
  • Highly visible finish.
  • Hot Dip Galvanised and powder coated for Indoor and Outdoor use.

Applications:

Use bollards ‘L’ to ‘XXL’ in traffic areas where lorries and forklifts operate, loading bays, site entrances, corners of buildings etc.

The use of bollard ‘S’ is recommended where space is restricted.

The ‘XXL’ bollard is equipped with a removable cap, which enables the bollard to be filled with concrete when in situ if required.

Lead time 10 to 15 days.

SKU: 199.22.720 Categories: Brand:

Description

Specifications:

  • Height: 1,200mm above surface

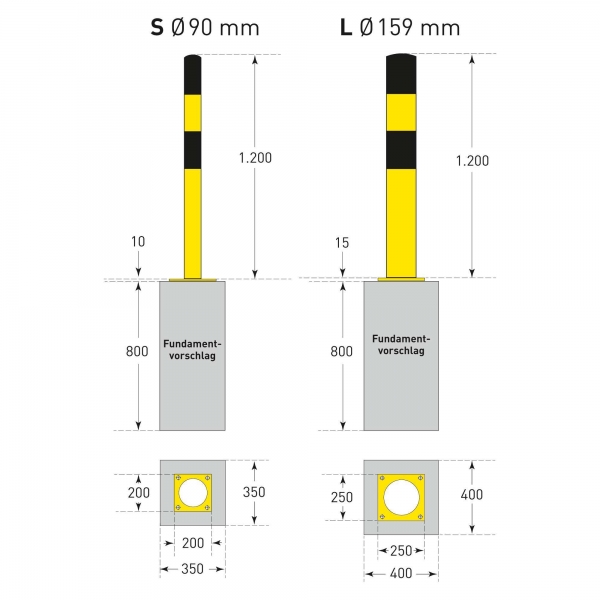

  • Fixing: Surface – Surface plate with pre-drilled 4 fixing holes/8 fixing holes (3XL). Sub-surface – 400mm depth with ground anchor

Finishes:

  • Hot Dip Galvanised and Powder coated yellow with black bands
  • Types ‘S’ and ‘L’ also available in HDG & Powder coated White/Red
  • Types ‘S’ and ‘L’ also available in Powder coated only Yellow/Black for indoor use

Dimension options:

       Protection Bollard ‘S’

  • Diameter: 90mm
  • Wall thickness: 3.6mm
  • Suitability: Medium to heavy impacts

       Protection Bollard ‘L’

  • Diameter: 159mm
  • Wall thickness: 4.5mm
  • Suitability: Heavy impacts

       Protection Bollard ‘XL’

  • Diameter: 194mm
  • Wall thickness: 4.5mm
  • Suitability: Very heavy impacts

       Protection Bollard ‘XXL’

  • Diameter: 273mm
  • Wall thickness: 5.0mm
  • Suitability: Extremely heavy impacts

       Protection Bollard ‘3XL’

  • Diameter: 323mm
  • Wall thickness: 6.3mm
  • Suitability: Extremely heavy impacts

  • Characteristics of the article 199.22.720

    Material Top grade steel
    Type S
    Finish powder-coated
    Colour yellow/black
    Overall height 1200 mm
    Height above floor 1200 mm
    Diameter 90 mm
    Material Thickness 3,6 mm
    Fixture for screw anchoring
    Applications indoor use
    Floor plate dimensions 200 x 200 x 10 mm
    Number of anchors 4
    TÜV Approved according to DGUV 108-007
    Weight 15,00 kg
